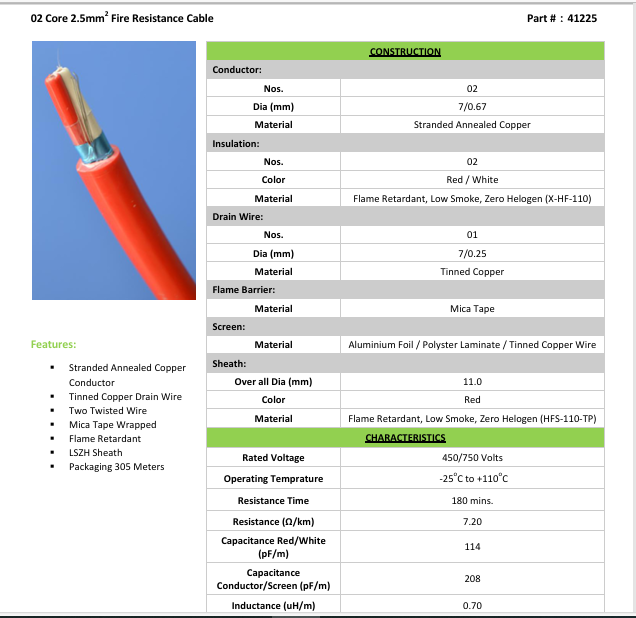

02 Core 2.5mm2 Fire Retardant Cable PONY

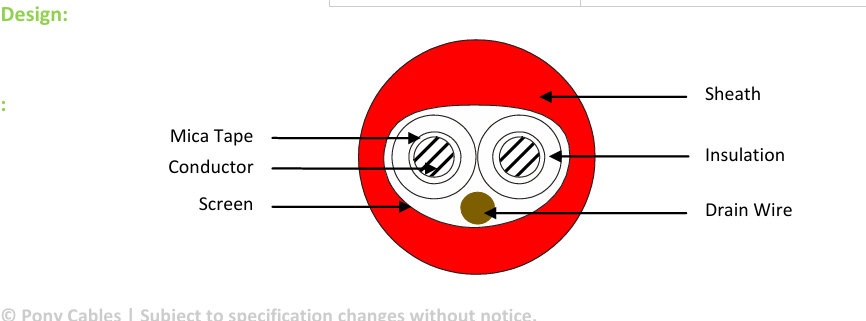

Description

Description

 Stranded Annealed Copper
Conductor
 Tinned Copper Drain Wire
 Two Twisted Wire
 Mica Tape Wrapped
 Flame Retardant
 LSZH Sheath
 Packaging 305 Meters

Fire Alaram Cable
Nos. :2
Dia (mm)  :7/0.67
Material :Stranded Annealed Copper

Insulation:
Nos.  :2
Color : Red/whote
Material : Flame Retardant, Low Smoke, Zero Helogen (X-HF-110)

Drain Wire:
02
Red / White

Drain Wire:
Nos.  01
Dia (mm): 7/0.25
Material Tinned Copper

Flame Barrier:
Material : Mica Tape

Material : Aluminium Foil / Polyster Laminate / Tinned Copper Wire

Sheath:
Over all Dia (mm) :11.0
Color Material :Red
Flame Retardant, Low Smoke, Zero Helogen (HFS-110-TP)

CHARACTERISTICS
Rated Voltage 450/750 Volts
Operating Temprature -25oC to +110oC
Resistance Time 180 mins.
Resistance (Ω/km) 7.20
Capacitance Red/White (pF/m) 114
Capacitance Conductor/Screen (pF/m) 208
Inductance (uH/m)  0.70

02 Core 2.5mm2 Fire Retardant Cable PONY   @ 1700/meter

Call Us or WhatsApp For confirm Pricing and stock availability.
