Description

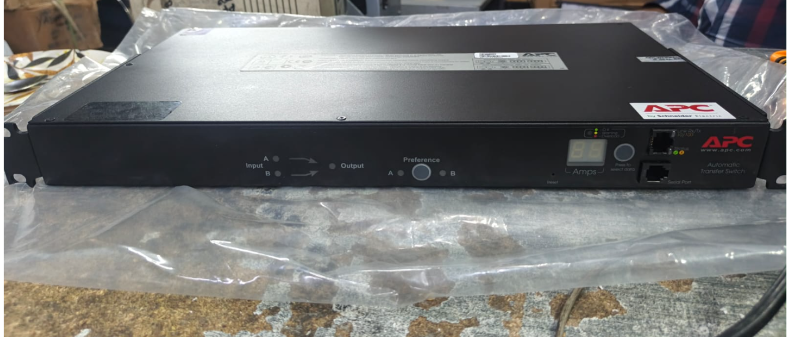

RACK ATS, 20A/208V, 16A/230V, C20 IN, (8) C13 (1) C19 OUT AP7723
APC RACK ATS, 20A/208V, 16A/230V, C20 IN, (8) C13 (1) C19 OUT. Product colour: Black. Input connection type: IEC-320 C20, Output connections: (8) IEC 320 C13, (1) IEC 320 C19. Certification: EN 55022 Class A,FCC Part 15 Class A. Nominal input voltage: 230 V, AC input frequency: 47/63 Hz, Nominal output voltage: 230 V. Dimensions (WxDxH): 432 x 229 x 44 mm, Weight: 3.93 kg
Warranty : 6 months
APC Rack Automatic Transfer Switch , Input: 230V , Input Connections: IEC-320 C20 , Output: 230V , Output Connections: IEC 320 C13,IEC 320 C19
Includes: Documentation CD, Rack Mounting brackets, RS-232 configuration cable.
| brand_ice | APC |
|---|---|
| Co2 Savings | 31.19 |
| Colour of product | Black |
| Package weight | 5.7 kg |
| Package dimensions (WxDxH) | 600 x 349 x 114 mm |
| Dimensions (WxDxH) | 432 x 229 x 44 mm |
| Weight | 3.93 kg |
| Certification | EN 55022 Class A,FCC Part 15 Class A |
| Operating temperature (T-T) | -5 – 45 °C |
| Storage temperature (T-T) | -25 – 65 °C |
| Operating relative humidity (H-H) | 5 – 95% |
| Storage relative humidity (H-H) | 5 – 95% |
| Input connection type | IEC-320 C20 |

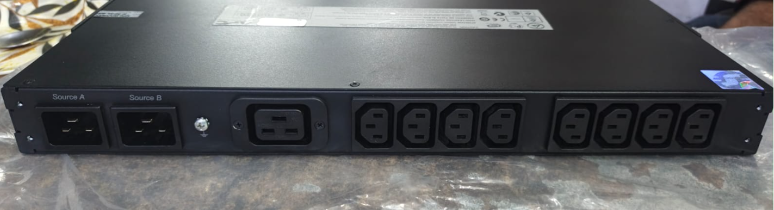

| Output connections | (8) IEC 320 C13, (1) IEC 320 C19 |
| Nominal input voltage | 230 V |
| AC input frequency | 47/63 Hz |
| Nominal output voltage | 230 V |
| Maximum input current per phase | 20 A |
| Maximum total current draw per phase | 16 A |
