Description

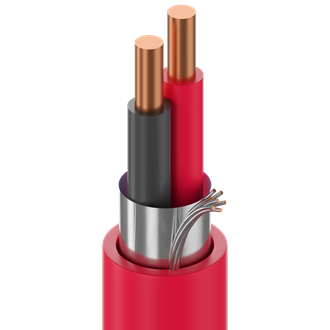

Belden 9575 is a multi-conductor / fire alarm / signal cable 2 core Cable 305 meter coil orignal
Electronic, 2 C #16 Sol BC, PVC Ins, OS, Red PVC Jkt, FPLR
Electronic, 2 Conductor 16AWG (Solid) Bare Copper, PVC Insulation, Overall Beldfoil® Shield, Red PVC Outer Jacket, FPLR
General Description
-
Belden 9575 is a multi-conductor / fire alarm / signal cable.
-
It is intended for low voltage / power-limited / signal / fire alarm applications (e.g. 4–20 mA, 0–10 V, control etc.). A
-

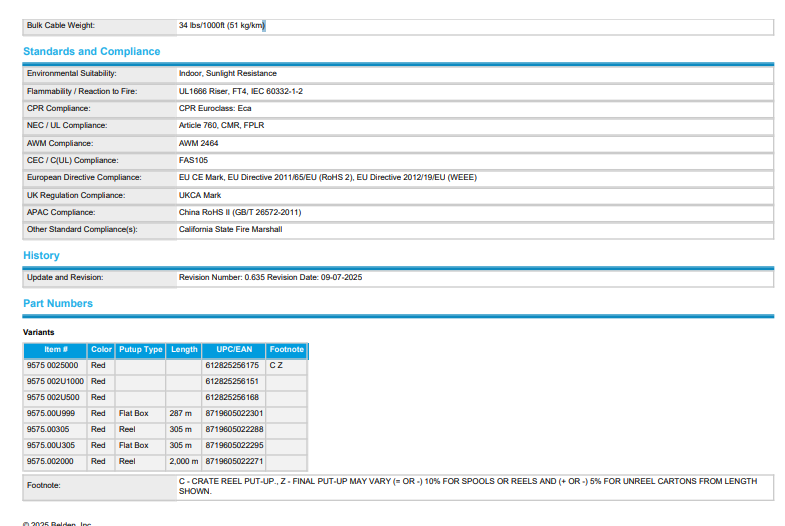

It meets certain fire / safety / riser / power-limited cable standards (UL, CMR, FPLR).

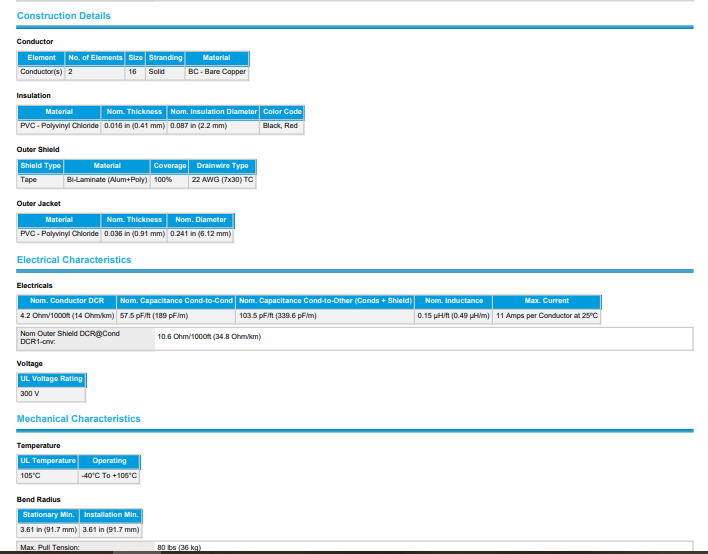

Electrical / Construction Specifications
Below is a compiled list of the key parameters:
| Parameter | Value / Description |
|---|---|
| Number of conductors | 2 conductors |
| Conductor size / gauge | 16 AWG (solid bare copper) |
| Insulation | PVC (polyvinyl chloride) |
| Insulation wall thickness | ~ 0.016 in (≈ 0.41 mm) |
| Shielding / overall shield | Beldfoil® (aluminum/polyester tape), 100 % coverage |
| Drain wire | 22 AWG (tinned copper, stranded, 7×30) |
| Outer jacket / sheath material | PVC (outer jacket) |
| Outer jacket wall thickness | ~ 0.036 in (≈ 0.91 mm) |
| Nominal overall diameter | ~ 0.241 in (≈ 6.12 mm) |
| DC resistance of conductor | ~ 4.1 Ω / 1000 ft (≈ 13.5 Ω / km) |
| Capacitance (conductor-to-conductor) | ~ 57.5 pF/ft (≈ 189 pF/m) |
| Capacitance (conductor to other conductor + shield) | ~ 103.5 pF/ft (≈ 339.6 pF/m) |
| Current rating | ~ 11 A per conductor (at 25 °C) |
| Voltage rating | 300 V (RMS) |
| Operating temperature range | –40 °C to +105 °C+3 |
| Minimum bend radius | ~ 3.61 in (≈ 91.7 mm |
| Max pull tension | ~ 80 lb (≈ 36 kg) |
Call Us or WhatsApp For confirm Pricing and stock availability.
