Description

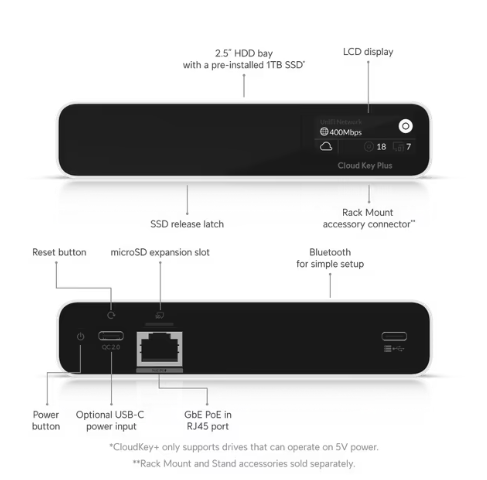

Compact UniFi Console that connects directly to the Site Manager at unifi.ui.com for powerful, multi-application site management.Includes full UniFi application suite for device management
Pre-installed 1 TB SSD
Connect and power using PoE
Optional USB-C power with Quick Charge 2.0/3.0 compliant adapter only
Bluetooth for instant setup
Main Hardware Specs
CPU: Octa-core ARM Cortex-A53 (~2.0 GHz)
RAM: 3 GB
Storage:
32 GB eMMC (system storage)
1 TB 2.5″ SATA SSD installed (upgradeable up to ~5 TB)
Network: 1 × Gigabit Ethernet (PoE-in)
Display: 1.42″ OLED status screen
Power: PoE (802.3af) or USB-C QuickCharge
Power consumption: about 9–13 W
What It Is Used For
This device acts as the central controller for a UniFi network:
Manage UniFi switches
Manage UniFi Wi-Fi access points
Manage UniFi gateways
Run UniFi Protect for CCTV recording
Remote management via UniFi Cloud
It can manage about 50 UniFi devices and around 20 HD cameras depending on configuration.
Supported UniFi Applications
The controller can run multiple UniFi apps:
UniFi Network – manage switches/APs
UniFi Protect – camera NVR
UniFi Access – door access systems
UniFi Talk – VoIP
UniFi Connect – IoT displays
Typical Use Case
Example network:
Internet
│
UniFi Gateway / Router
│
PoE Switch
│
├── UniFi Access Points
├── UniFi Cameras
└── Cloud Key Gen2+ (controller + NVR)
Advantages
✅ Local controller (no PC required)
✅ Built-in NVR for UniFi cameras
✅ SSD storage for faster video recording
✅ Very small and low power device
Call us or whatsapp for confirmed prices and availability
