Description

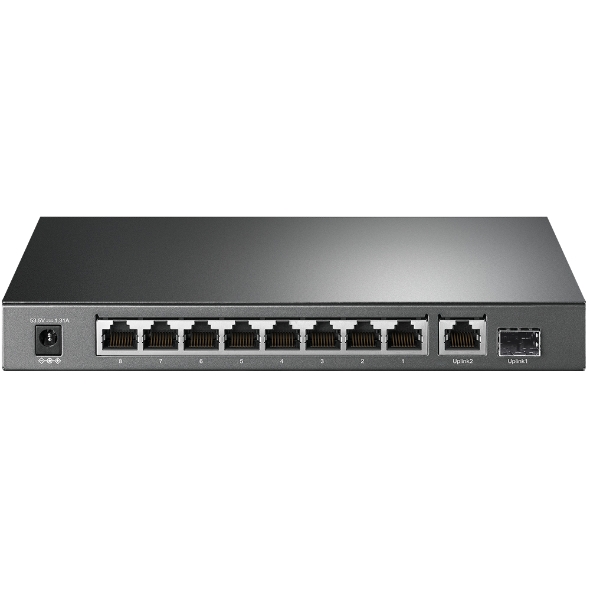

TL-SG1210P
10-Port Gigabit Desktop Switch with 8-Port PoE+
- 9 10/100/1000Mbps RJ45 ports, 1 Gigabit SFP port
- With 8 PoE+ ports, transfers data and power on one single cable
- Works with IEEE 802.3af/at compliant PDs and expands office network
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic
- High PoE power budget with up to 30W for each PoE port and 63W for all PoE ports
- Easy to use, with no configuration and installation needed.
HARDWARE FEATURES Interface 8 PoE+ 10/100/1000Mbps RJ45 Ports
1 10/100/1000Mbps RJ45 Port
1 Gigabit SFP SlotNetwork Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-X MMF, SMFFan Quantity Fanless Physical Security Lock Yes Power Supply External Power Adapter(Output: 53.5VDC / 1.31A) Packet Forwarding Rate 14.88 Mpps PoE+ Ports(RJ45) Standard: 802.3at/802.3af compliant
PoE Ports: Port1- Port 8
PoE Power Budget: 63WMac Address Table 4K Jumbo Frame 16 KB Switching Capacity 20 Gbps Dimensions ( W x D x H ) 209 × 126 × 26 mm Max Power Consumption 7.11 W (220/50Hz. no PD connected)
78.13 W (220/50Hz. with 63W PD connected)Max Heat Dissipation 24.25 BTU/h (no PD connected)
266.42 BTU/h (with 63W PD connected)SOFTWARE FEATURES Advanced Features Compatible With IEEE 802.3af/at Compliant PDs
EEE802.3x Flow Control
802.1p/DSCP QoS
IGMP SnoopingTransmission Method Store-And-Forward OTHERS Certification CE, FCC, RoHS Package Contents TL-SG1210P, Power Adapter, Installation Guide Environment Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5%~90% non-condensing
