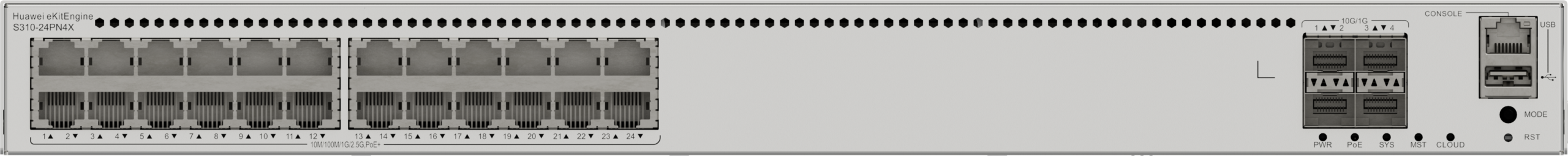

Huawei S310-24PN4X 24 Port POE Switch

Description

Huawei S310-24PN4X 24 Port 4x10GE SFP+ ports PoE+ 200 Gbit/s Managed L2+ Switch
Huawei S310-24PN4X is an enterprise managed Layer-2+ PoE network switch designed for business networks, surveillance systems, Wi-Fi access points, and campus networks. It provides high-speed uplinks and PoE power for devices.

Key Specifications

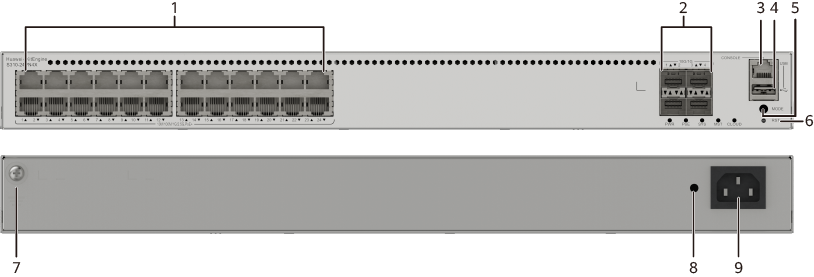

Ports

24 × 10/100/1000/2.5G RJ45 PoE+ ports

4 × 10GE SFP+ uplink ports (10-Gigabit fiber or DAC)

Switching Capacity: 200 Gbit/s

Packet Forwarding Rate: 144 Mpps

PoE Budget: Up to 400 W total

PoE per port: up to 30 W (IEEE 802.3at PoE+)

Hardware Features
Built-in AC power supply

1U rack-mountable metal chassis

2 cooling fans

Console port (RJ45) for configuration

USB port for firmware upgrades / file transfer

Network Capabilities (L2+)
Typical features supported:

VLAN (802.1Q)

Link aggregation (LACP)

QoS traffic management

STP / RSTP / MSTP

Static routing

DHCP snooping

ACL security policies

Typical Use Cases
This switch is commonly used for:

IP camera systems (CCTV)

Wi-Fi 6 / Wi-Fi 6E access points

Enterprise LAN access layer

Fiber uplink to core switch using SFP+

Campus / office networks

For more information please see below link

https://support.huawei.com/enterprise/en/doc/EDOC1100335757/be2104bc/s310-24pn4x

Call us  or whatsapp for confirmed prices and availability
