MT‐SW1008PE 8 Port POE switch Mtlink

Original price was: 7,500₨.Current price is: 7,150₨.

Add to wishlist
Compare
Category:
Description

Description

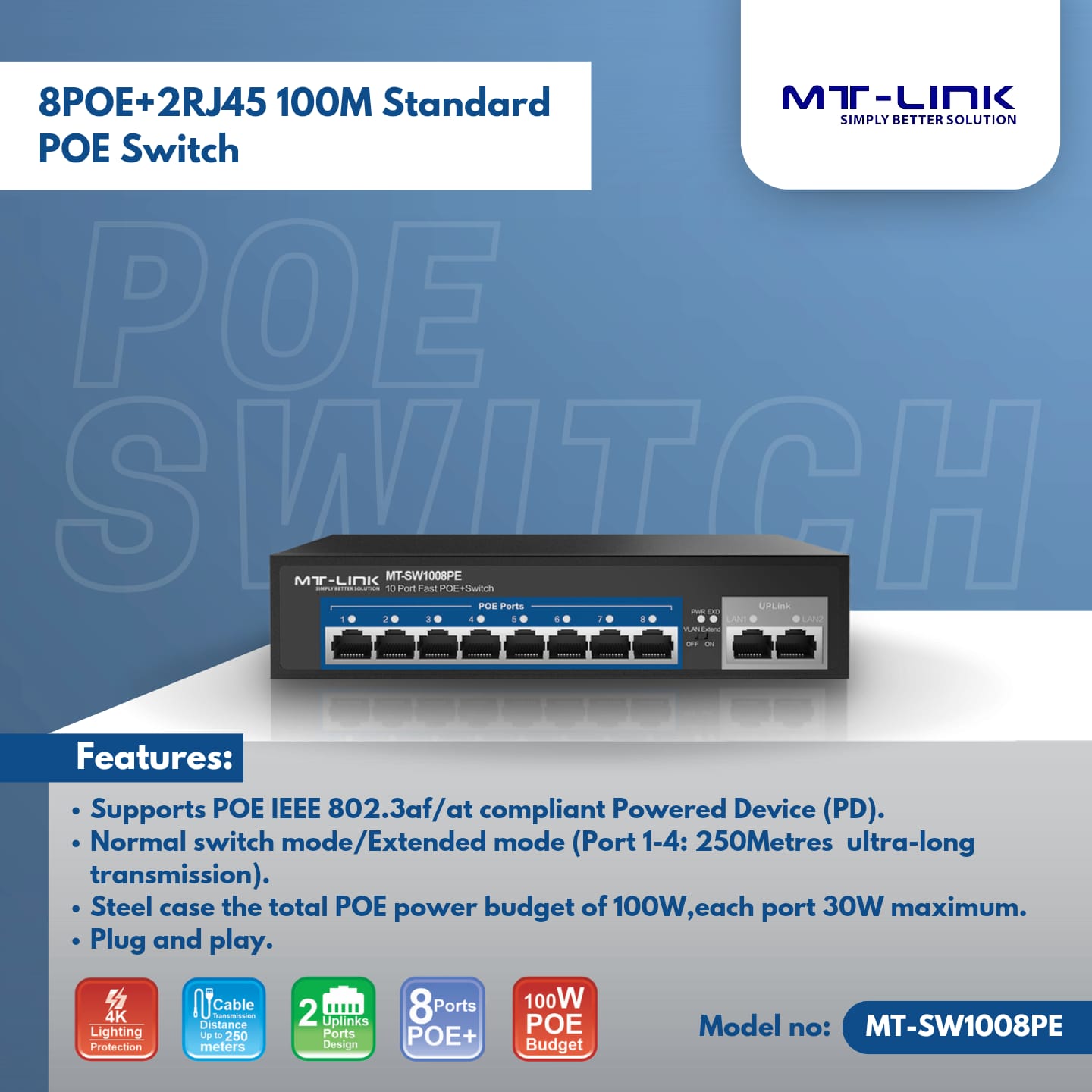

MT‐SW1008PE 8 Port 10/100 POE switch with 2 UPLink port 120W

Description

The MT-SW1008PE 8-port 10/100Mbps 8Port 10/100 Switch with 8POE Ports 1uplink 15.4W each port total 110W Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports. The Switch is Plug-and-Play and each port can be used as general ports or Uplink ports and can be simply plugged into a server, a hub or a switch, using straight cable or crossover cable.

The MT-Link MT-SW1008D 8Port 10/100 Switch with 8POE Ports 1uplink 15.4W each port total 110WFast Ethernet Switch provides you with a low-cost, easy-to-use, high-performance, seamless and standard upgrade to improve your old network to a 100Mbps network. It will boost your network performance up to full duplex data transfer. Its wire-speed switching that forwards packets can be as fast as the speed that your network delivers those packets to them.

Features

  • Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for half-duplex mode
  • Supports MAC address auto-learning and auto-aging
  • LED indicators for monitoring power, link, activity
  • , desktop or wall-mounting design
  • External Power Adapter supply

Specification:


Standards and Protocols IEEE802.3, 802.3u, 802.3x, CSMA/CD, TCP/IP
Basic Function Wire-speed Performance
MAC Address Auto-Learning and Auto-aging
IEEE802.3x flow control for Full-Duplex Code and backpressure for Half-Duplex Mode
Backbound Bandwidth 1.6Gbps
MAC Address Table 1k
Forwarding Rate 10BASE-T: 14880pps/port
100BASE-TX: 148800pps/port
Transmission Method Store-and-Forward
Ports 8 10/100Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX)
Network Media 10Base-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ù STP (maximum 100m)
100Base-Tx: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ù STP (maximum 100m)
LED Indicators Power, Link/Act (1, 2, 3, 4, 5)
Safety & Emission FCC, CE
Dimensions (W*D*H) 5.5*3.4*1.1 in. (140*87*27.5 mm)
Environment Operating Temperature: 0C-40C (32F-104F)
Storage Temperature: -40C-70C (-40F-158F)
Operating Humidity: 10%-90% non-condensing
Storage Humidity: 5%-90% non-condensing
Power External Power Supply


Call Us or WhatsApp For confirm Pricing and stock availability.
