UniFi Dream Machine Pro Controller UDM PRO

Description

Ubiquiti UniFi Dream Machine Pro (UDM-Pro) is an all-in-one enterprise network appliance used in offices, ISPs, and advanced home networks. It combines a router, firewall, UniFi controller, switch, and NVR in a single rack-mount device.

10G Cloud Gateway with 100+ UniFi device / 1,000+ client support and 3.5 Gbps IPS routing.

Main

Hardware Specs

• CPU: Quad-core ARM Cortex-A57 @ 1.7 GHz

• RAM: 4 GB DDR4

• Storage: 16 GB eMMC

• Form factor: 1U rackmount

• Max power consumption: ~33 W

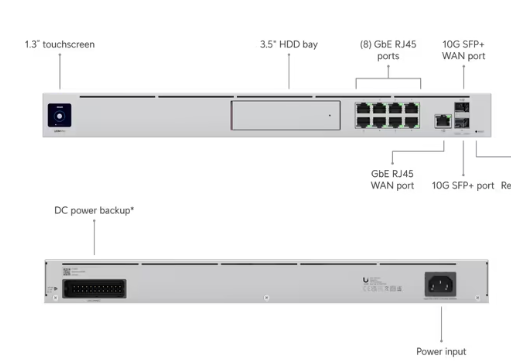

Ports

• WAN

  • 1 × Gigabit RJ45 WAN

  • 1 × 10G SFP+ WAN

• LAN

  • 8 × Gigabit RJ45 LAN

  • 1 × 10G SFP+ LAN

This allows 10-gig uplink to switches or fiber networks.

Key Features

• Integrated Security Gateway

  • Advanced firewall

  • Deep Packet Inspection

  • IDS/IPS up to 3.5 Gbps throughput

• UniFi Controller Built-In

  • Manage UniFi switches

  • Manage UniFi access points

  • Monitor network clients

• UniFi Protect NVR

  • Built-in 3.5″ HDD bay for CCTV recordings.

• VPN support

  • IPsec

  • OpenVPN

  • WireGuard / Teleport

• UniFi OS Apps

  • UniFi Network

  • UniFi Protect

  • UniFi Access

  • UniFi Talk

Typical Network Setup

Example deployment:
