VIVANCO CAT 6A Module Plug Shielded

Description

Key Features & Performance

Part number(VCR6A1 )

• box of 100 pieces

• Shielded design: S/FTP style with full shielding to suppress electromagnetic interference—ideal for high-speed 10 Gigabit Ethernet.

• Compatibility: Works with both stranded and solid cables of 23–26 AWG; supports standard wiring schemes (T568A/B
• Gold‑plated phosphor‑bronze contacts: 50 µ‑inch plating for reliable conductivity and low electrical loss.
• High durability: ≥ 1,000 plug insertion cycles and ≥ 250 IDC terminations.

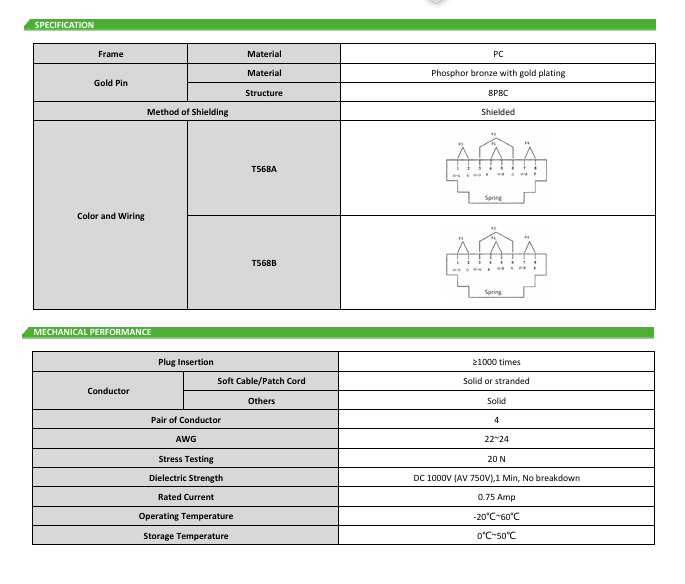

Electrical & Mechanical Specs

• Supporting standards: ANSI/TIA‑568.2‑D Cat 6A, ISO/IEC 11801 Class Ea.

• Dielectric withstand: ≥ DC 1,000 V (AC 750 V for 1 minute) without breakdown or arcing.

• Resistance metrics:

  • DC resistance ≤ 300 mΩ

  • Contact resistance ≤ 20 mΩ

  • Insulation resistance ≥ 500 MΩ (under normal pressure

  • The VIVANCO VCR6A1 is a top-grade shielded Cat 6A RJ45 plug designed for professional infrastructure. It meets stringent 10 GbE requirements, ensures noise-resistant connections, and delivers long-term reliability. Rugged contacts and easy installation make it a great choice for demanding data‑center and enterprise environments.
