X-500 Handheld FTTx Fusion Splicer SHINHO

Description

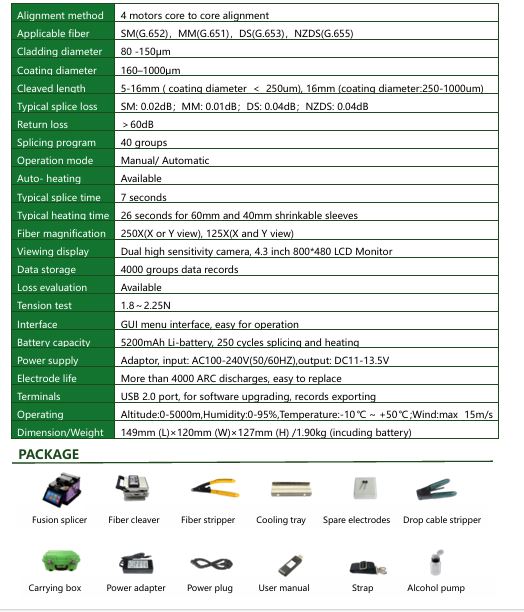

1-X-500/X600 Handheld FTTx Fusion Splicer  (Brand : SHINHO ) :

FEATURES ※ Small and light, easy to carry ※ 4 motors accurate core to core alignment ※ 7 seconds splicing & 26 seconds heating ※ Automatic & real-time ARC calibration ※ Heating temperature and time both adjustable ※ Automatic splicing and heating, easy to operate ※ Apply to bare fiber, pigtails, drop cable etc. ※ Suitable for FTTx, FTTH, CATV projects etc.

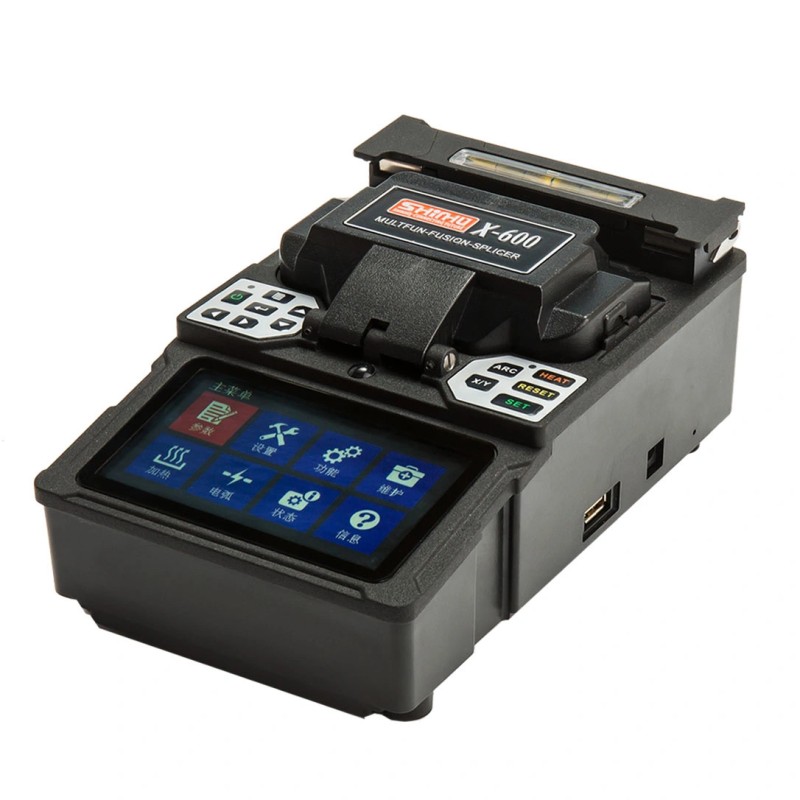

2- X600 Handheld FTTx Fusion Splicer  (Brand : SHINHO ) :

Features
●Small, light, long battery life
●4 motors accurate core alignment
●250 times magnification of fiber cores
●7s fast splicing, 26s intelligent heating
●More than 4000 times electrodes discharging
●4400mAh Li-batery, 220 cycels splicing and heating
●Inductive automatic heater, not heating without fibers
●3 in 1 multi-function clamps, new waterproof structure
●Apply to bare fibers, drop cables and jumper wires splicing

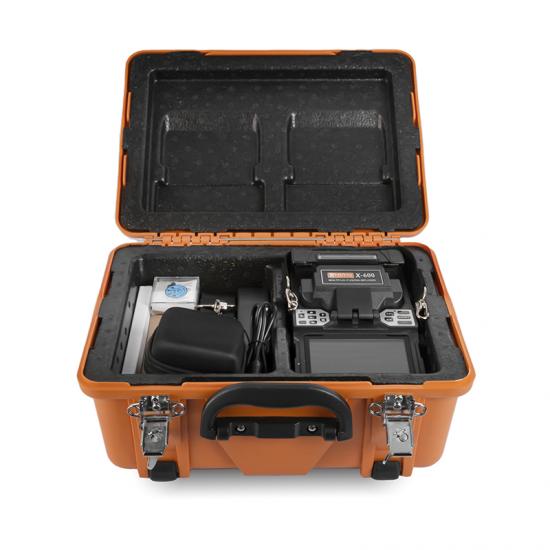

Mini Fusion Splicer Kit:

• PAS image digital processing system, core to core alignment
• Arc calibrated by temperature and pressure parameters
• 7 seconds typical splicing and 26 seconds heating time
• Metro style GUI, easy operation
• Intelligent operation, auto heating and fusing
• High definition 4.3” colorful LCD

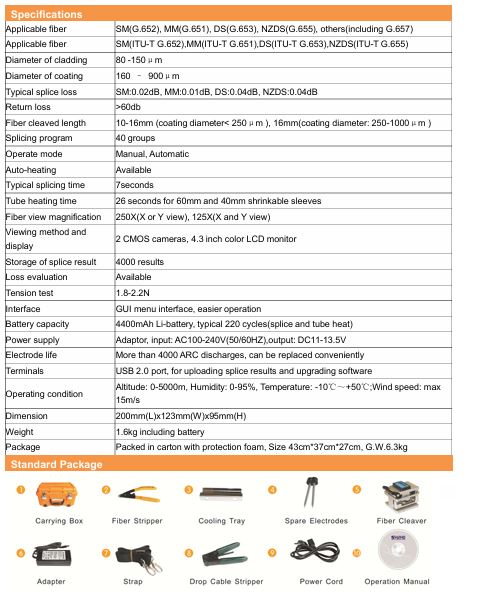

  Applicable fibers
  	-T G.652), MM (ITU-T G.651), DS (ITU-T G.653), NZDS (ITU-TG.655), others(including G.657)
  Cladding diameter	80 -150μm
  Coating diameter	160 – 900μm
  Typical splice loss	SM 0.02dB, MM 0.01dB, DS 0.04dB, NZDS 0.04dB
  Return loss	<60dB
  Cleaved length	10~16mm ( Diameter of coating < 250μm ) ; 16mm ( Diameter of coating
  	250~1000μm )
  Splicing program	40 groups
  Operate mode	Manual, Automatic
  Auto-Heat	Available
  Typical splicing time	7 seconds
  Heating time	26 seconds for 60mm, 40mm shrinkable sleeve
  Magnification	250 times for single display, 125 times for double display
  Photoelectric system	Two high sensitive cameras, 4.3′ 480×280 colorful LCD
  Splicing data record	Storing up to 4000 groups of records
  Loss evaluation	Available
  Tension test	1.8~2.2N
  Interface	GUI menu interface, easy operation
  Battery capacity	4400mAh, 220 times fusion and heating, pluggable, real-time power monitor
  Power supply	Adaptor, input: AC 100-240V ( 50/60HZ ) , output: DC 11~13.5V
  Electrodes lifetime	More than 4000 times splicing, electrodes can be replaced conveniently
  External port	USB2.0 port, used to derive splicing record data, software upgrade
  Operate environment	Altitude: 0~5000m; Relative humidity: 0~95%; Temperature: -10ºC~+50ºC;
  	Wind speed: max 15m/s
  Volume/Weight	200mm(L)×123mm(W)×96mm(H) / 1.60kg (including battery)

  For More Information Please see below link:

https://www.xhfiber.com/shinho-x-600-fusion-splicer-testing-and-operation_n41
