Description

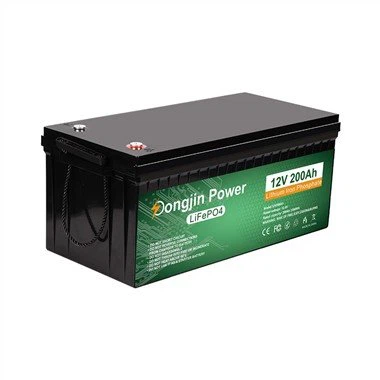

12V 200ah Lithium Ion Battery
• Drop-in lead acid replacement
• Can be connected in series up to 48V for backup systems
• Warranty of 3 years or 4000 cycles
| Item | Parameter | Remarks | |
| 12V 200AH Deep Cycle LiFePO4 Lithium Battery | Nominal Capacity | 200Ah | |
| Nominal Voltage | 12.8V | ||
| Battery pack Cell Quantity in Series (pcs) | 4S | ||
| Energy | 2560Wh | ||
| Max Charge Voltage | 14.6V | ||
| Discharge cut-off voltage | 10V | ||
| Charge Method | CC/CV | ||
| Standard Charge Current | 40A | ||
| Max. Charge Current | 100A | ||
| Max. Discharge current | 200A | ||
| Cycle Life | ＞5000 times | 80%DOD,@25℃ | |
| Dimension | 522*240*218mm | ||
| Weight | Approx.23kg | ||
| Working Temperature Range | Charge: 0°C–45°C Discharge: -20°C–60°C |
||
| Storage Temperature | -10°C–45°C | ||
| Storage Humidity | 65±20% | ||
| Series parallel mode (S series, P parallel)： | Series connection only, max 4 series | ||
| Certificates | MSDS, UN38.3 FCC.CE.ROHS | ||
| Warranty | 3 years | ||
| Protection Class | IP20 | ||
Call Us or WhatsApp for confirm Pricing and stock availability.
