9841 Multi-Conductor – Low Capacitance

Description

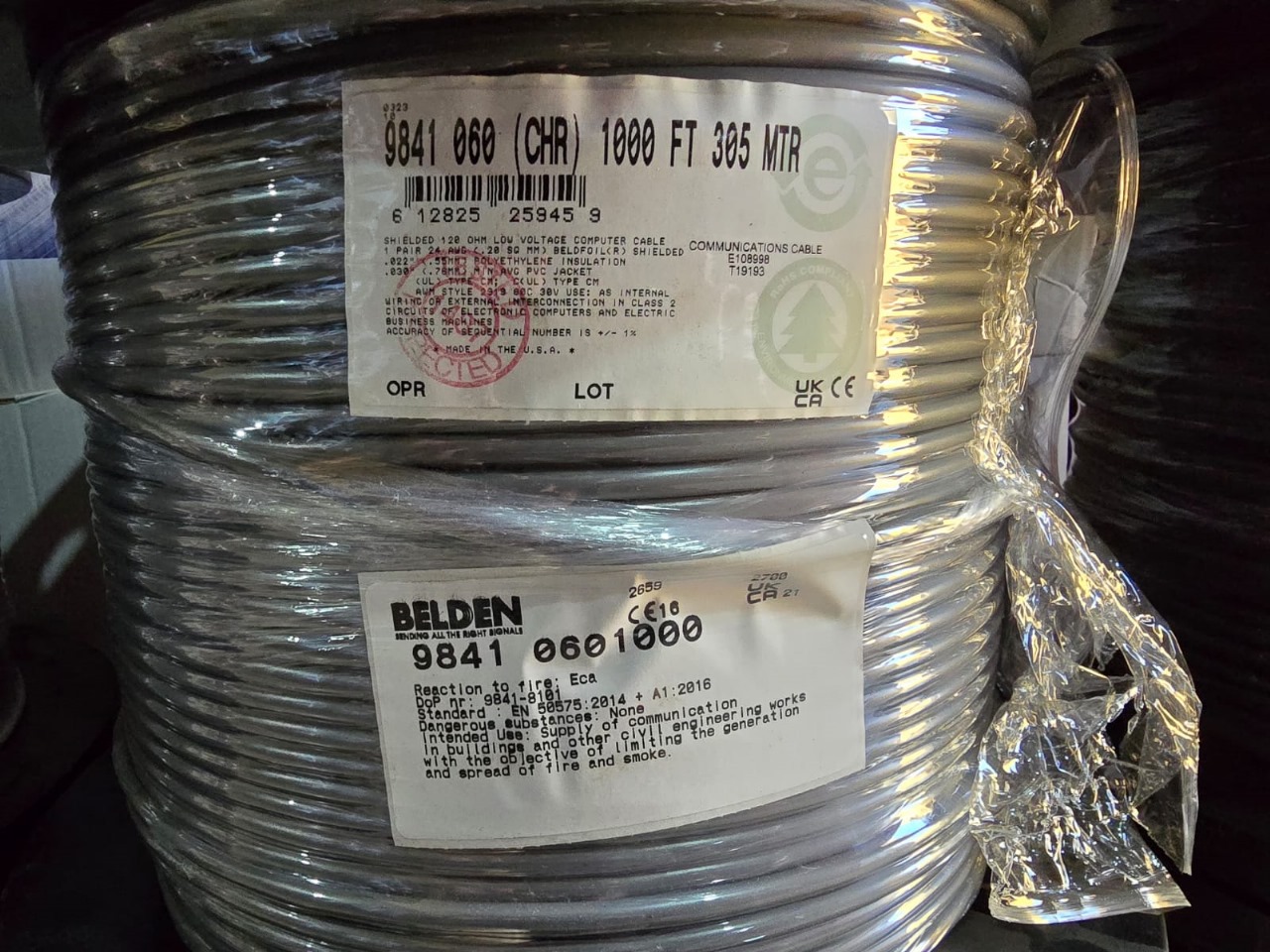

Belden 9841 Multi-Conductor – Low Capacitance Computer Cable for EIA RS-485 Applications / Coil of 305 meter or 1000 ft

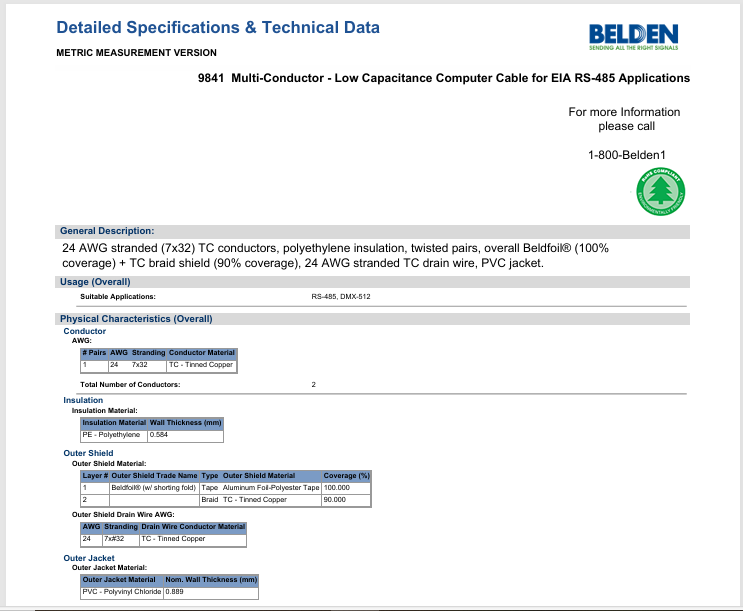

General Description:
24 AWG stranded (7×32) TC conductors, polyethylene insulation, twisted pairs, overall Beldfoil® (100%
coverage) + TC braid shield (90% coverage), 24 AWG stranded TC drain wire, PVC jacket.
Usage (Overall)
Suitable Applications: RS-485, DMX-512
Physical Characteristics (Overall)
Conductor
AWG:
# PairsAWGStrandingConductor Material
1 24 7×32 TC – Tinned Copper
Total Number of Conductors: 2
Insulation
Insulation Material:
Insulation MaterialWall Thickness (mm)
PE – Polyethylene 0.584
Outer Shield
Outer Shield Material:
Layer #Outer Shield Trade NameTypeOuter Shield Material Coverage (%)
1 Beldfoil® (w/ shorting fold) Tape Aluminum Foil-Polyester Tape 100.000
2 Braid TC – Tinned Copper 90.000
Outer Shield Drain Wire AWG:
AWGStrandingDrain Wire Conductor Material
24 7x#32 TC – Tinned Copper
Outer Jacket
Outer Jacket Material:
Outer Jacket Material Nom. Wall Thickness (mm)
PVC – Polyvinyl Chloride 0.889
Overall Cable
Overall Cabling Fillers: Fibrous Polypropylene
Overall Cabling Lay Length & Direction:
Length (mm)Direction Twists (twist/m)
63.500 Left Hand 15.749
Overall Nominal Diameter: 5.893 mm
Pair
Pair Color Code Chart:
Color
White/Blue and Blue/White

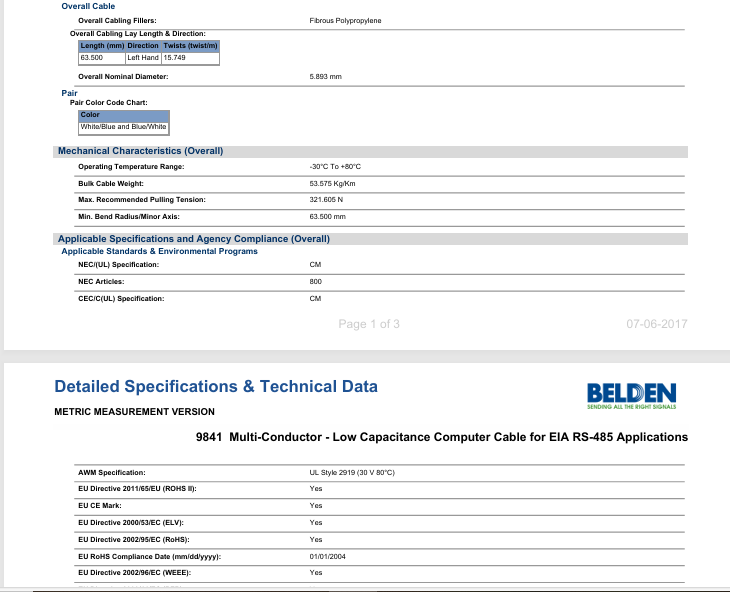

Mechanical Characteristics (Overall)
Operating Temperature Range:-30°C To +80°C
Bulk Cable Weight: 53.575 Kg/Km
Max. Recommended Pulling Tension: 321.605 N
Min. Bend Radius/Minor Axis: 63.500 mm
Applicable Specifications and Agency Compliance (Overall)
Applicable Standards & Environmental Programs
NEC/(UL) Specification: CM
NEC Articles: 800
CEC/C(UL) Specification: CM

AWM Specification: UL Style 2919 (30 V 80°C)
EU Directive 2011/65/EU (ROHS II): Yes
EU CE Mark: Yes
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2002/95/EC (RoHS): Yes
EU RoHS Compliance Date (mm/dd/yyyy): 01/01/2004
EU Directive 2002/96/EC (WEEE): Yes
EU Directive 2003/11/EC (BFR): Yes
CA Prop 65 (CJ for Wire & Cable): Yes
MII Order #39 (China RoHS): Yes
Flame Test
UL Flame Test: UL1685 UL Loading
CSA Flame Test: FT1
Suitability
Suitability – Indoor: Yes
Plenum/Non-Plenum
Plenum (Y/N): No
Plenum Number: 82841, 89841

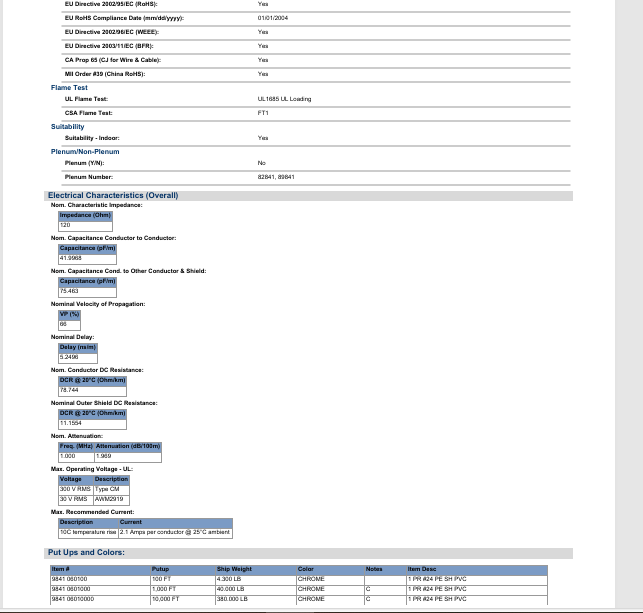

Electrical Characteristics (Overall)
Nom. Characteristic Impedance:
Impedance (Ohm)
120
Nom. Capacitance Conductor to Conductor:
Capacitance (pF/m)
41.9968
Nom. Capacitance Cond. to Other Conductor & Shield:
Capacitance (pF/m)
75.463
Nominal Velocity of Propagation:
VP (%)
66
Nominal Delay:
Delay (ns/m)
5.2496
Nom. Conductor DC Resistance:
DCR @ 20°C (Ohm/km)
78.744
Nominal Outer Shield DC Resistance:
DCR @ 20°C (Ohm/km)
11.1554
Nom. Attenuation:
Freq. (MHz) Attenuation (dB/100m)
1.000 1.969
Max. Operating Voltage – UL:
Voltage Description
300 V RMS Type CM
30 V RMS AWM2919
Max. Recommended Current:
Description Current
10C temperature rise 2.1 Amps per conductor @ 25°C ambient
Put Ups and Colors:
Item # Putup Ship Weight Color Notes Item Desc
9841 060100 100 FT 4.300 LB CHROME 1 PR #24 PE SH PVC
9841 0601000 1,000 FT 40.000 LB CHROME C 1 PR #24 PE SH PVC
9841 06010000 10,000 FT 380.000 LB CHROME C 1 PR #24 PE SH PVC
METRIC MEASUREMENT VERSION
9841 Multi-Conductor – Low Capacitance Computer Cable for EIA RS-485 Applications
9841 060500
9841 0605000
500 FT
5,000 FT
20.000 LB
200.000 LB
CHROME
CHROME
C
1 PR #24 PE SH PVC
1 PR #24 PE SH PVC

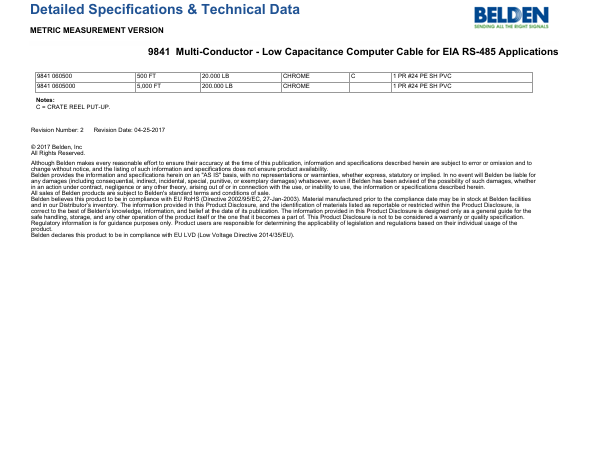

Notes:
C = CRATE REEL PUT-UP.
Revision Number: 2 Revision Date: 04-25-2017
© 2017 Belden, Inc
All Rights Reserved.
