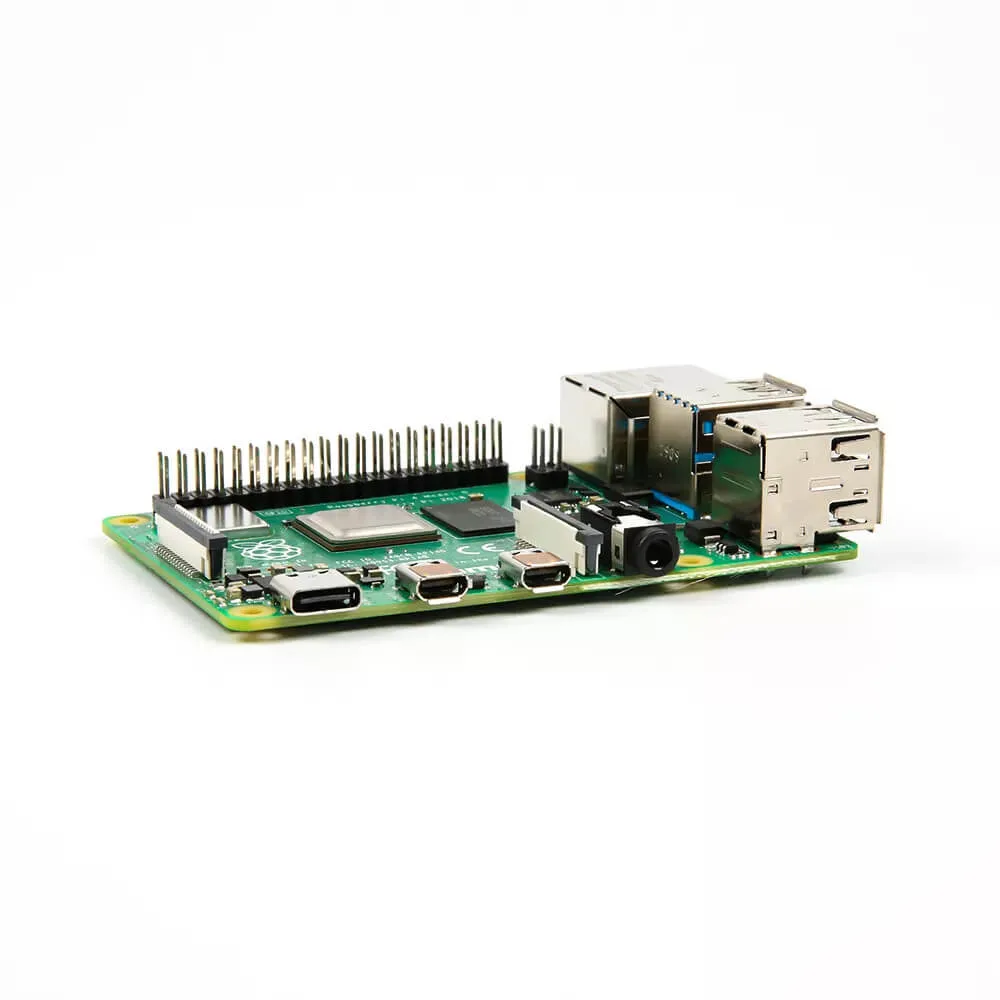

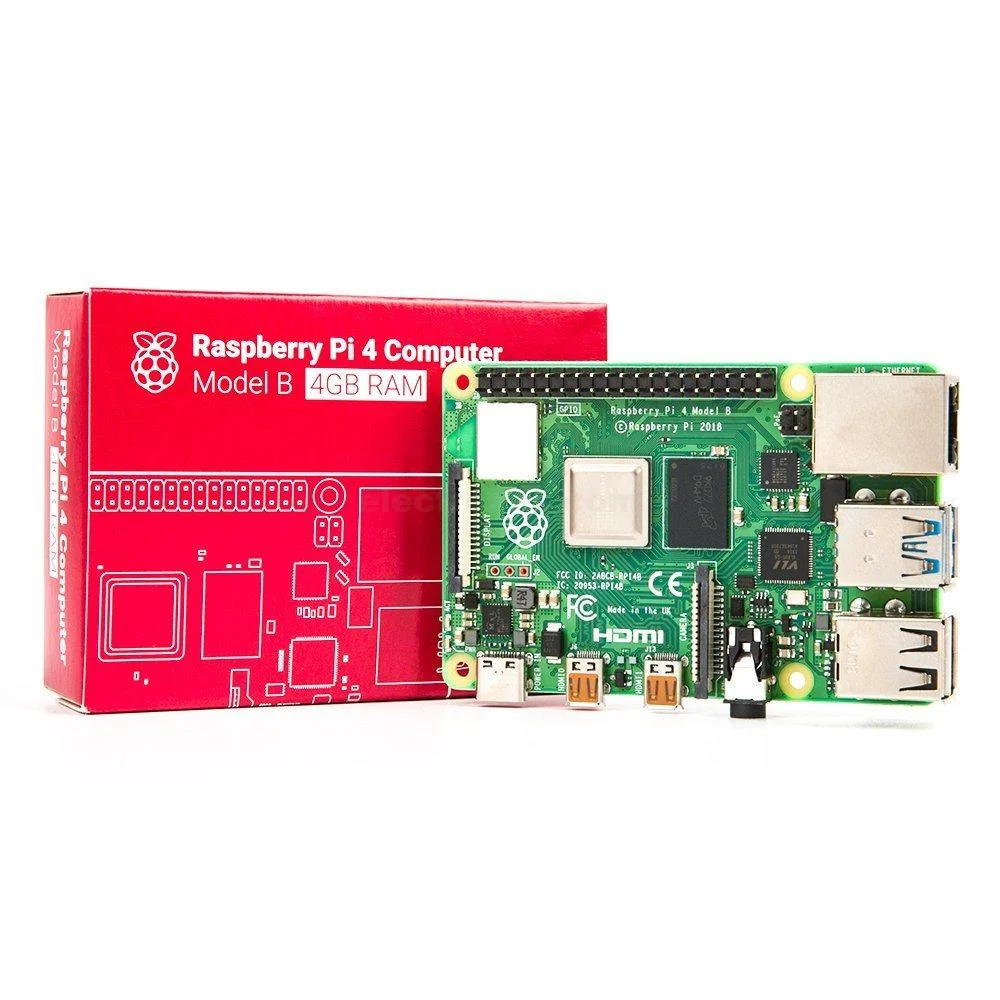

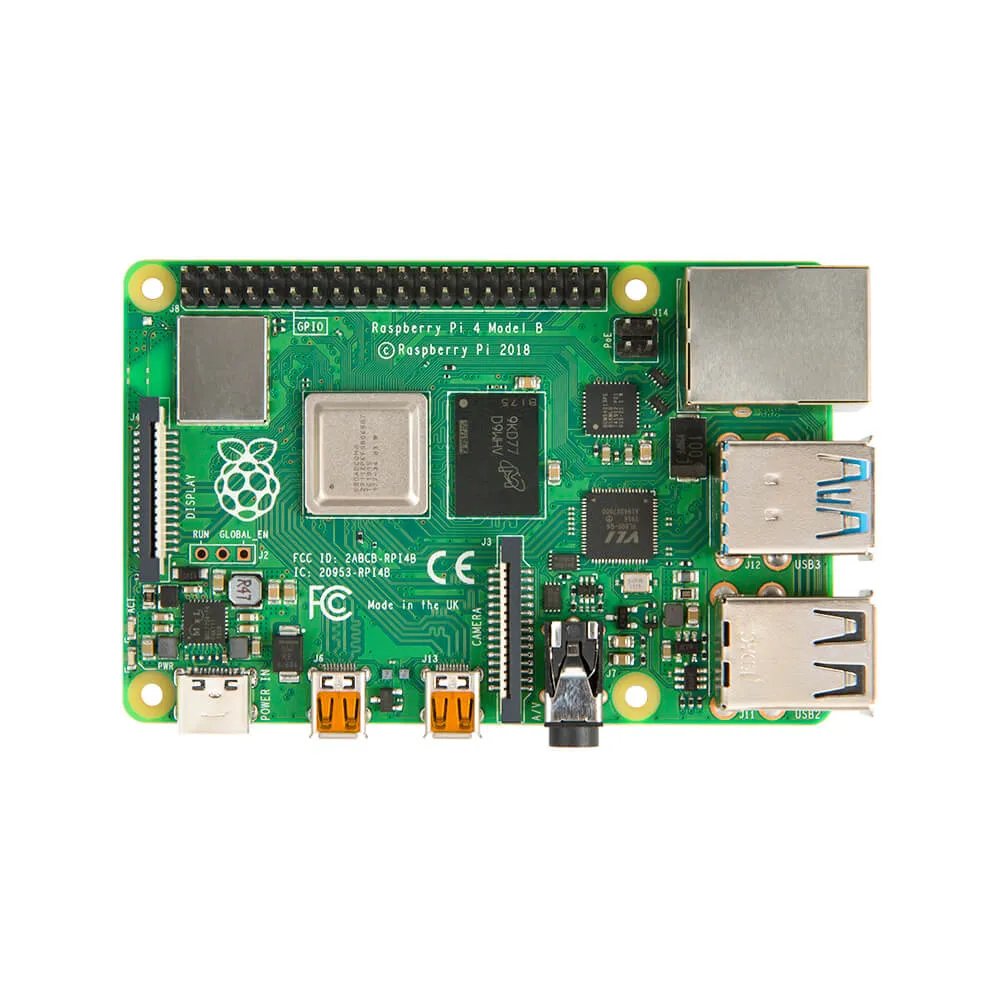

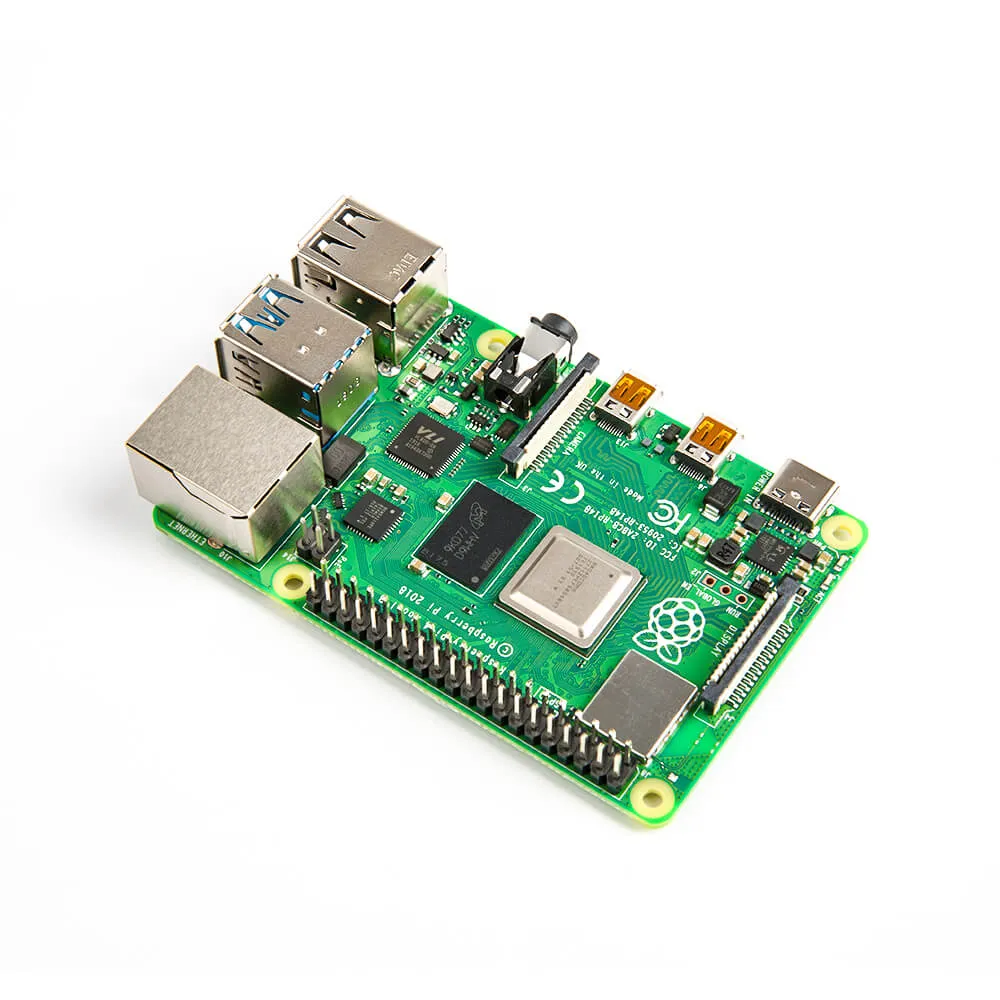

Raspberry Pi 4 model B 4GB Computer Board

Description

Raspberry Pi 4 Model B 4Gb Ram Mini Computer Development Board
Features
Operating Voltage: 5V
Processor: Broadcom BCM2711, Quad core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
RAM: 4GB LPDDR4-3200 SDRAM
Connectivity:
– 2.4GHz and 5.0Ghz IEEE 802.11ac wireless LAN
– Bluetooth 5.0, BLE
– Gigabit Ethernet

Interfacing Options:
– Extended 40-pin GPIO header
– 2 micro-HDMI ports (up to 4K p60 supported)
– 2 USB 2.0 ports
– 2 USB 3.0 ports
– CSI camera port for connecting a Raspberry Pi camera
– DSI display port for connecting a Raspberry Pi touchscreen display
– 4-pole stereo output and composite video port

Graphics:
– H.265 (4kp60 decode), H264 (1080p60 decode, 1080p30 encode)
– OpenGL ES 3.0 graphics

Storage: Micro SD port for loading your operating system and storing data
Power Supply: 5V/3A DC power input (USB-C or GPIO)
More Info: https://www.raspberrypi.org/products/raspberry-pi-4-model-b/
Quick Start Guide: https://projects.raspberrypi.org/en/projects/raspberry-pi-setting-up

Raspberry Pi 4 Variants:
– Raspberry Pi 4 (2GB RAM)

– Raspberry Pi 4 (4GB RAM)

– Raspberry Pi 4 (8GB RAM)

Rpi 4 Related Products:
– Raspberry Pi 4 Official Casing

– Raspberry Pi 4 Heat Sinks

– Samsung EVO 32GB MicroSD Card

– 1m Micro HDMI to Standard HDMI Cable Black (Type A to Type D)

– 5MP Night vision camera

– 5MP camera

Documents

Raspberry Pi 4 Model B schematic diagrams
https://datasheets.raspberrypi.com/rpi4/raspberry-pi-4-reduced-schematics.pdf

Raspberry Pi 4 Model B mechanical drawing:
https://www.raspberrypi.com/documentation/

Specification :

• Broadcom BCM2711, Quad core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
• 4GB LPDDR4-3200 SDRAM (depending on model)
• 2.4 GHz and 5.0 GHz IEEE 802.11ac wireless, Bluetooth 5.0, BLE
• Gigabit Ethernet
• 2 USB 3.0 ports; 2 USB 2.0 ports.
• Raspberry Pi standard 40 pin GPIO header (fully backwards compatible with previous boards)
• 2 × micro-HDMI ports (up to 4kp60 supported)
• 2-lane MIPI DSI display port
• 2-lane MIPI CSI camera port
• 4-pole stereo audio and composite video port
• H.265 (4kp60 decode), H264 (1080p60 decode, 1080p30 encode)
• OpenGL ES 3.0 graphics
• Micro-SD card slot for loading operating system and data storage
• 5V DC via USB-C connector (minimum 3A*)
• 5V DC via GPIO header (minimum 3A*)
• Power over Ethernet (PoE) enabled (requires separate PoE HAT)
• Operating temperature: 0 – 50 degrees C ambient

* A good quality 2.5A power supply can be used if downstream USB peripherals consume less than 500mA in total.
