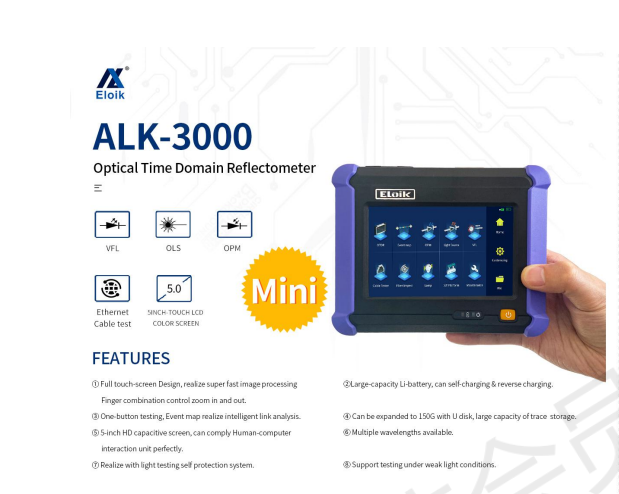

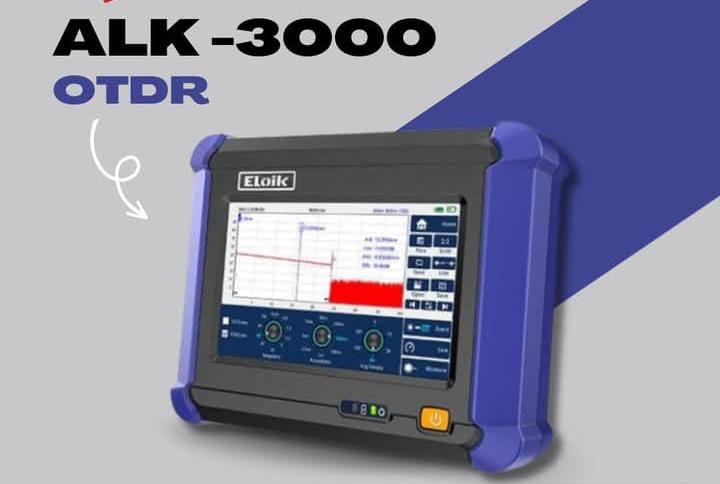

ALK-3000 OTDR 150km plus Range

Description

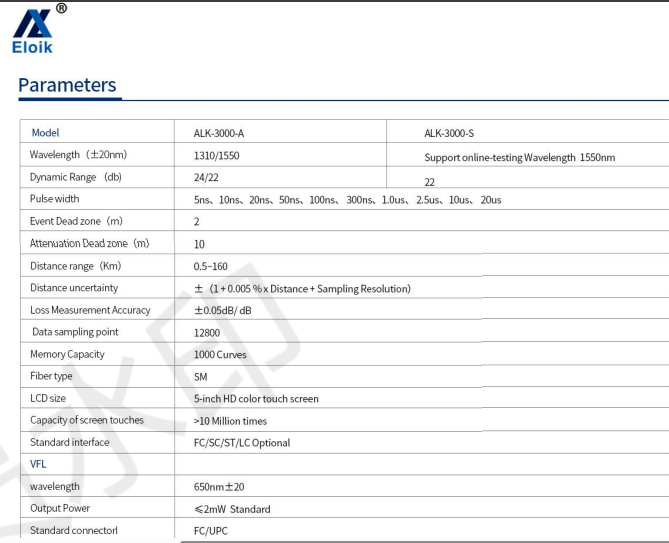

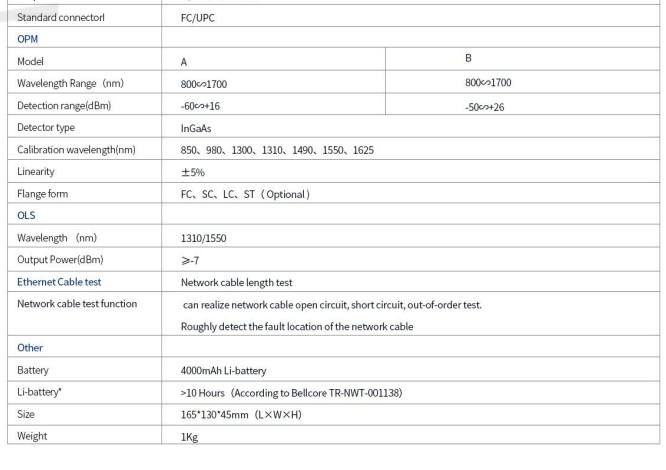

Specification:

✅Modules ALK-3000 OTDR

✅Center wavelength(±20nm) 1310/1550 1310/1550 1310/1550 1310/1550
✅Dynamic Range(dB) 28/26
Pulse width 10ns,20ns,50ns,100ns, 300ns,1.0ms, 2.5ms,10ms, 20ms
✅Event Dead Zone(m) 2
Attenuation dead zone(m) 10
Distance Range(Km)) 0.5~80 0.5~100 0.5~150
✅Distance Measurement Accuracy ±(1m + sample space + measurement distance×0.005%)
Linearity ±0.05dB/ dB
✅Memory capacity 1000
Fiber Type SMF
✅Display 7 inch LCD
Capacitive screen touch time >10 million ti
Optical connector FC/SC/ST optional
✅Visual light source
Center wavelength 650nm±20
Out power <1dBm
Interface FC/UPC
Other
✅Battery NimH Smart Charge Battery

ALK-3000 OTDR 130km plus Range
